Here are some pointers that have been sent
to me... (do you have any observations to add?
dave@barkshire.co.uk )
-

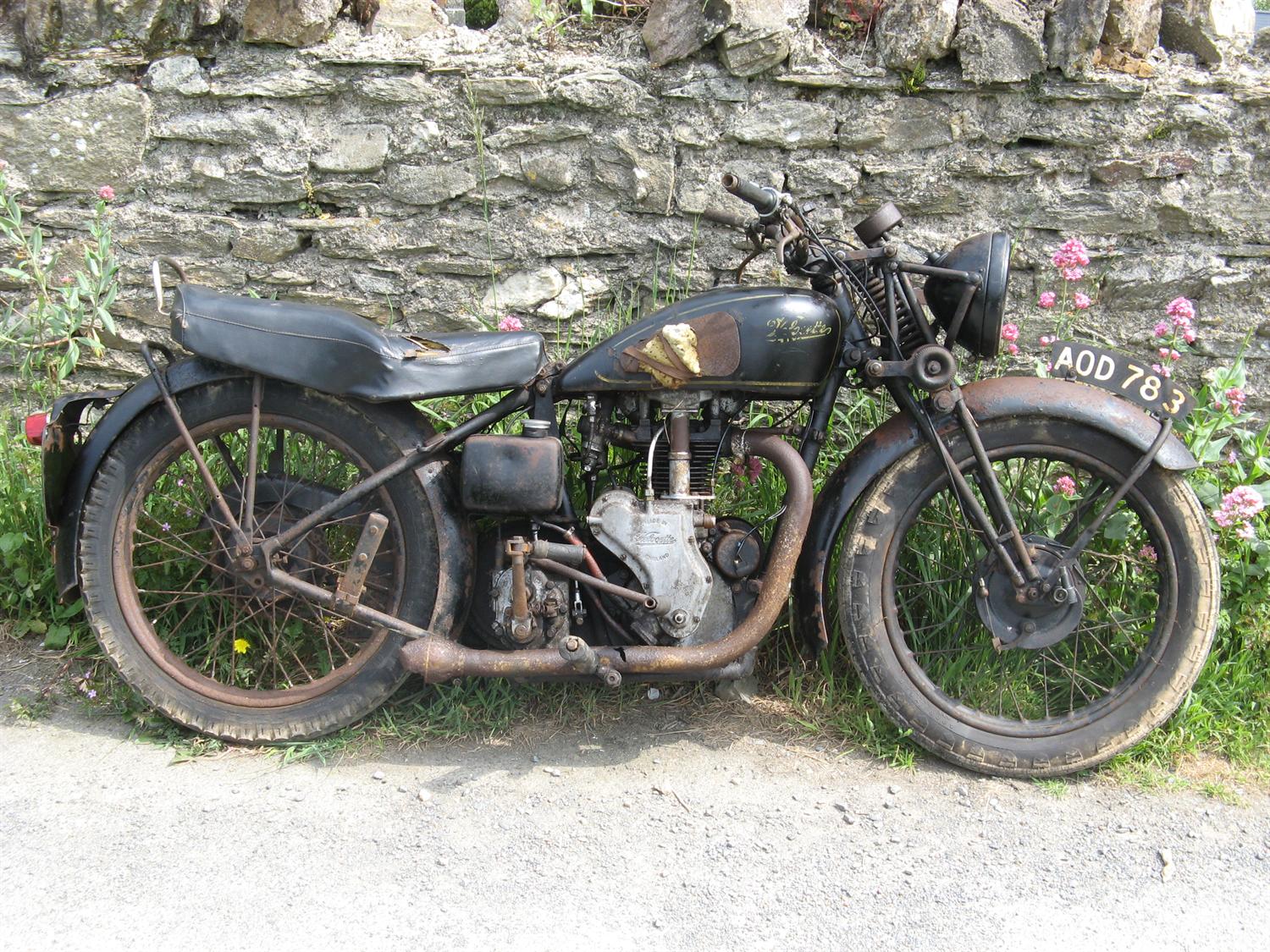

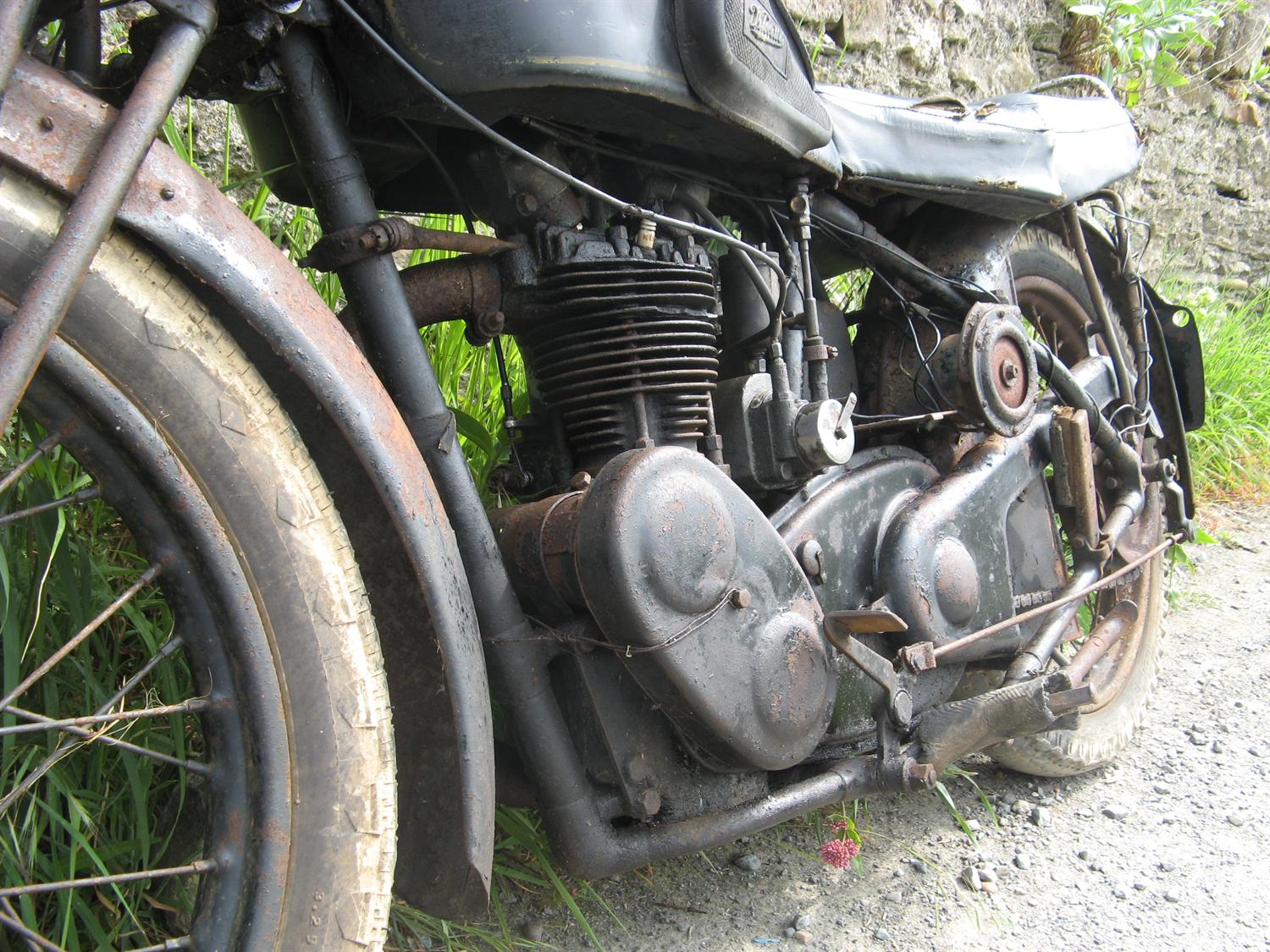

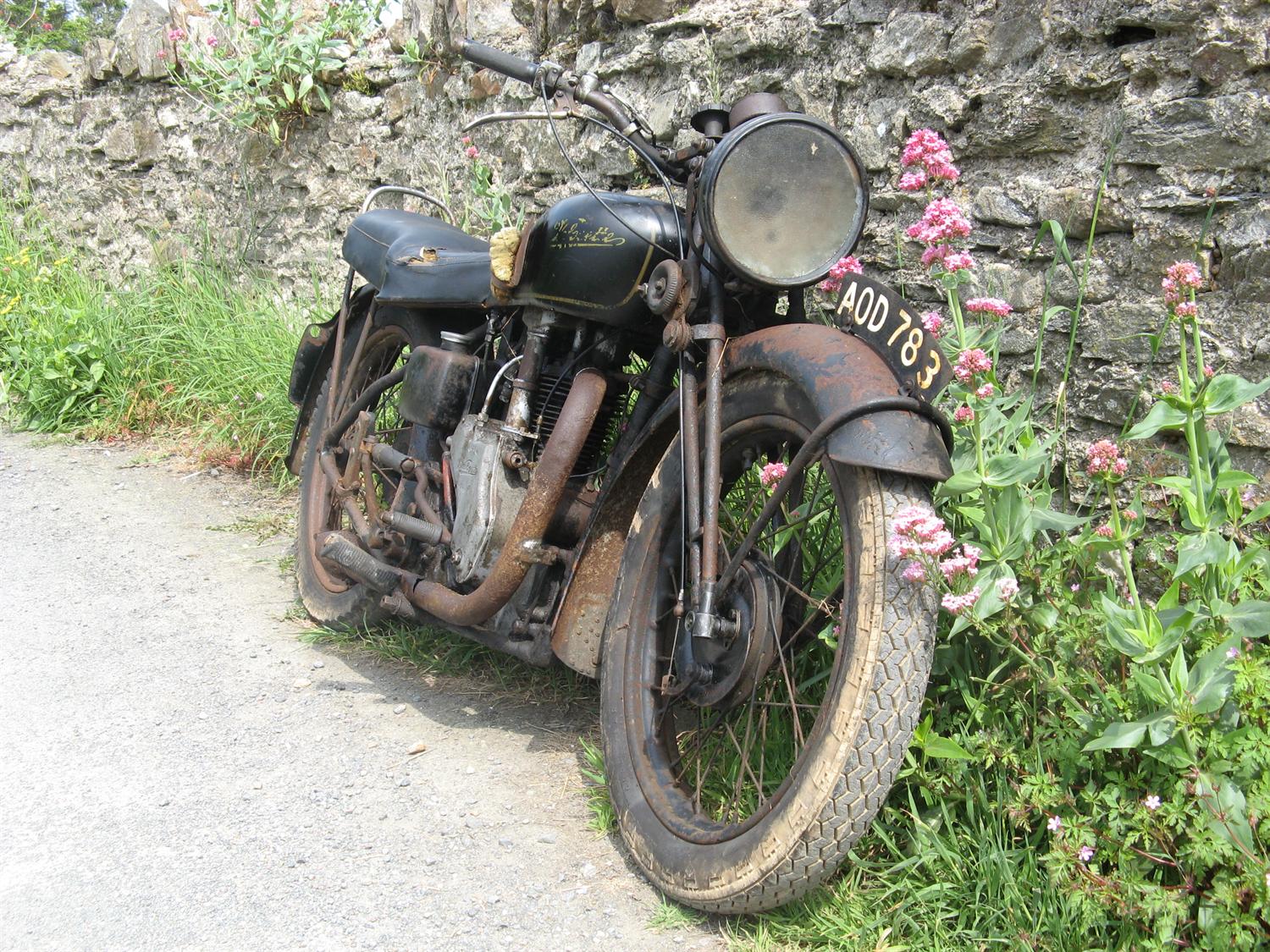

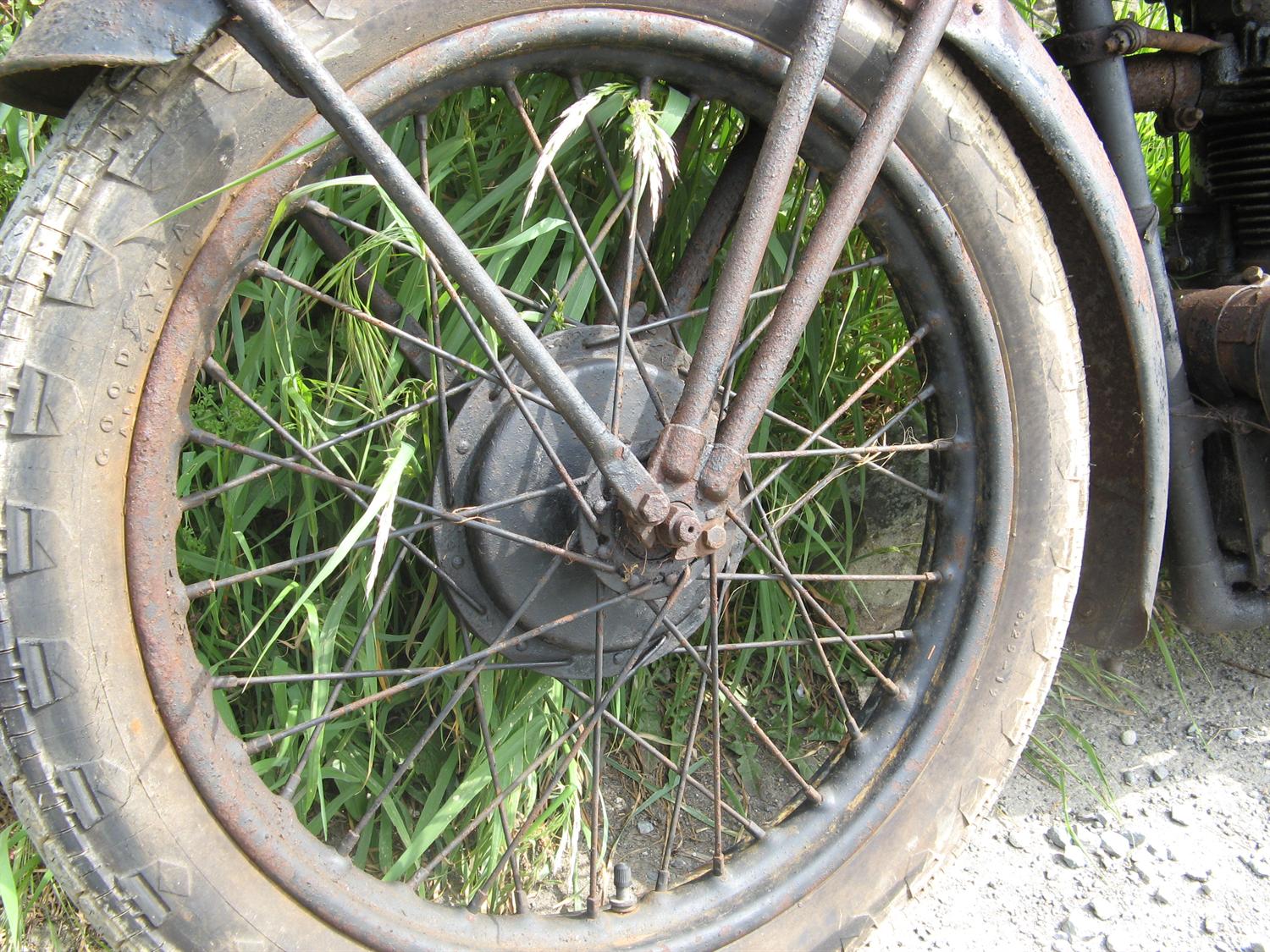

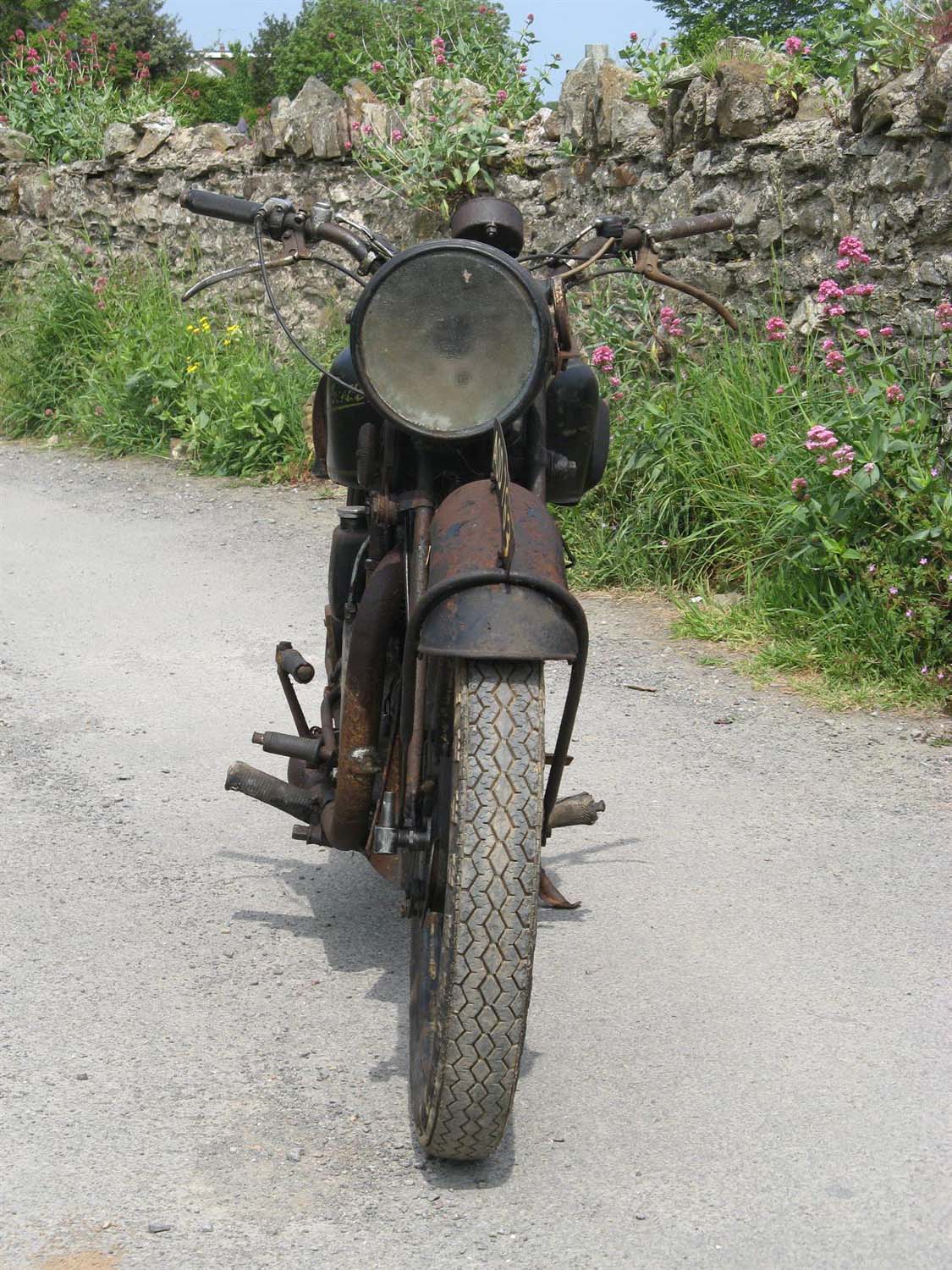

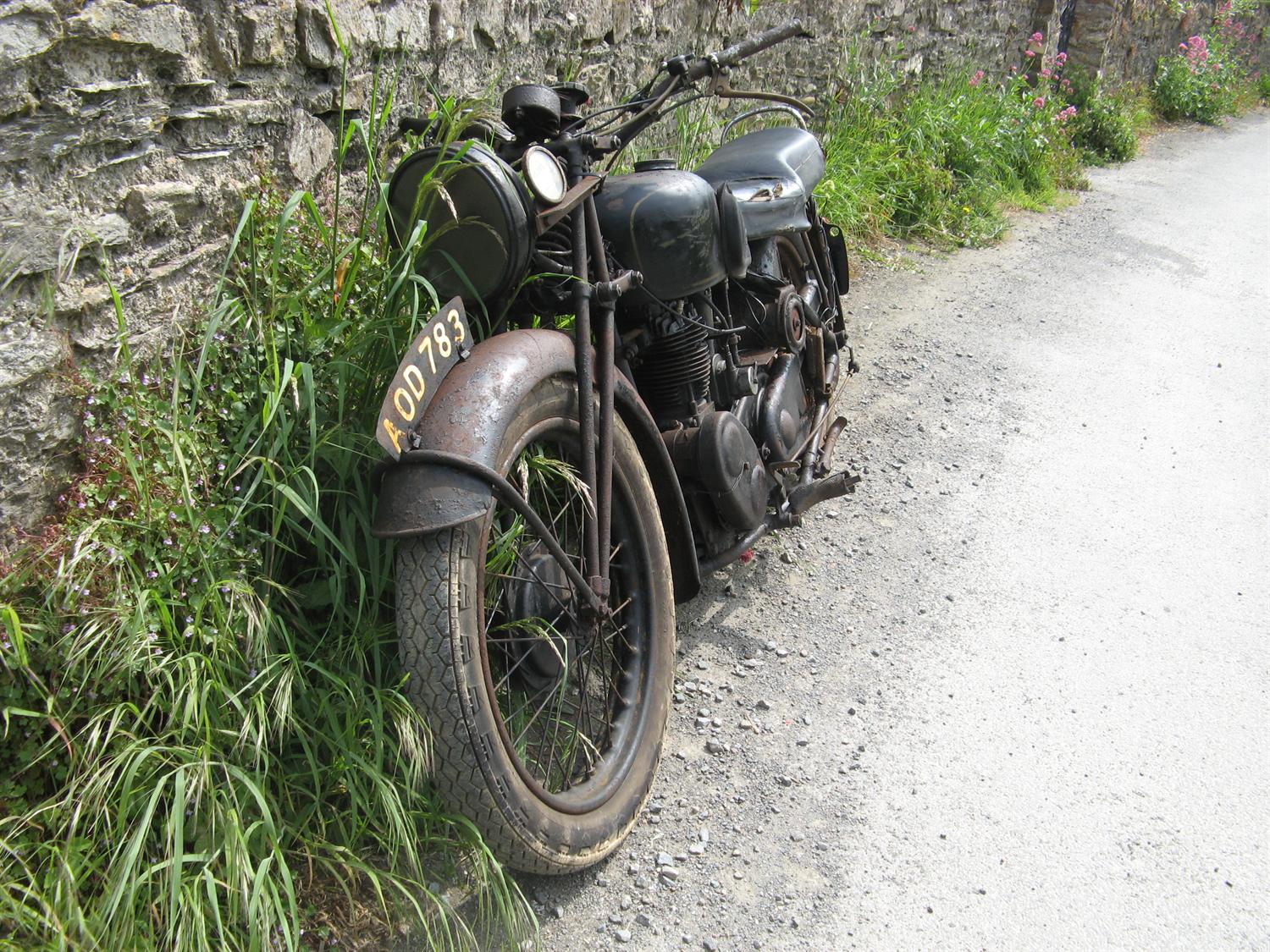

Front Mudguard,
should be deep valanced with a flare/skirt at bottom. (lower stay
obviously missing)
-

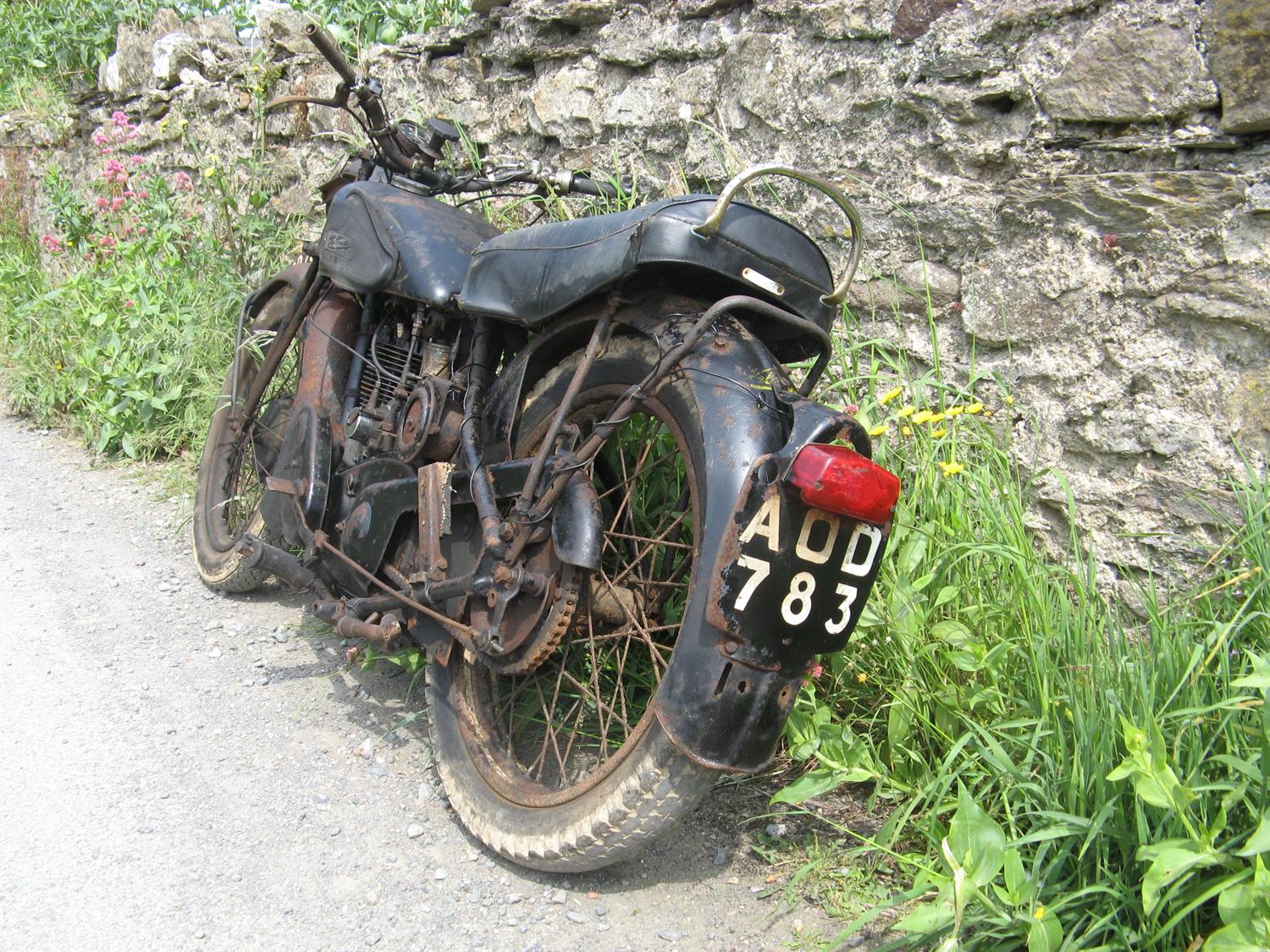

Rear mudguard seems
to be OK from what I can see. It should have the brackets to hold the
stand up near the bottom, I can't see if they are there.
-

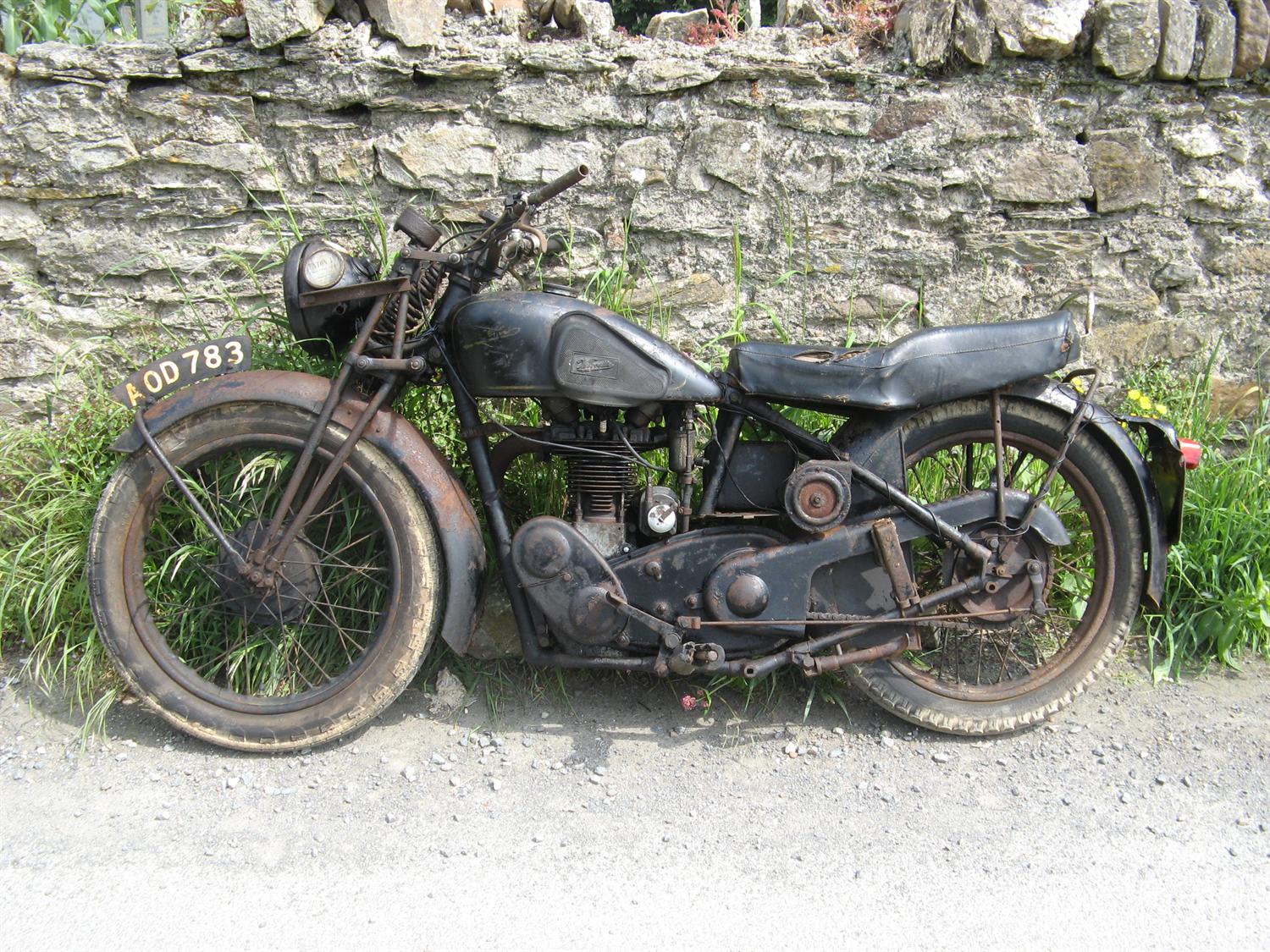

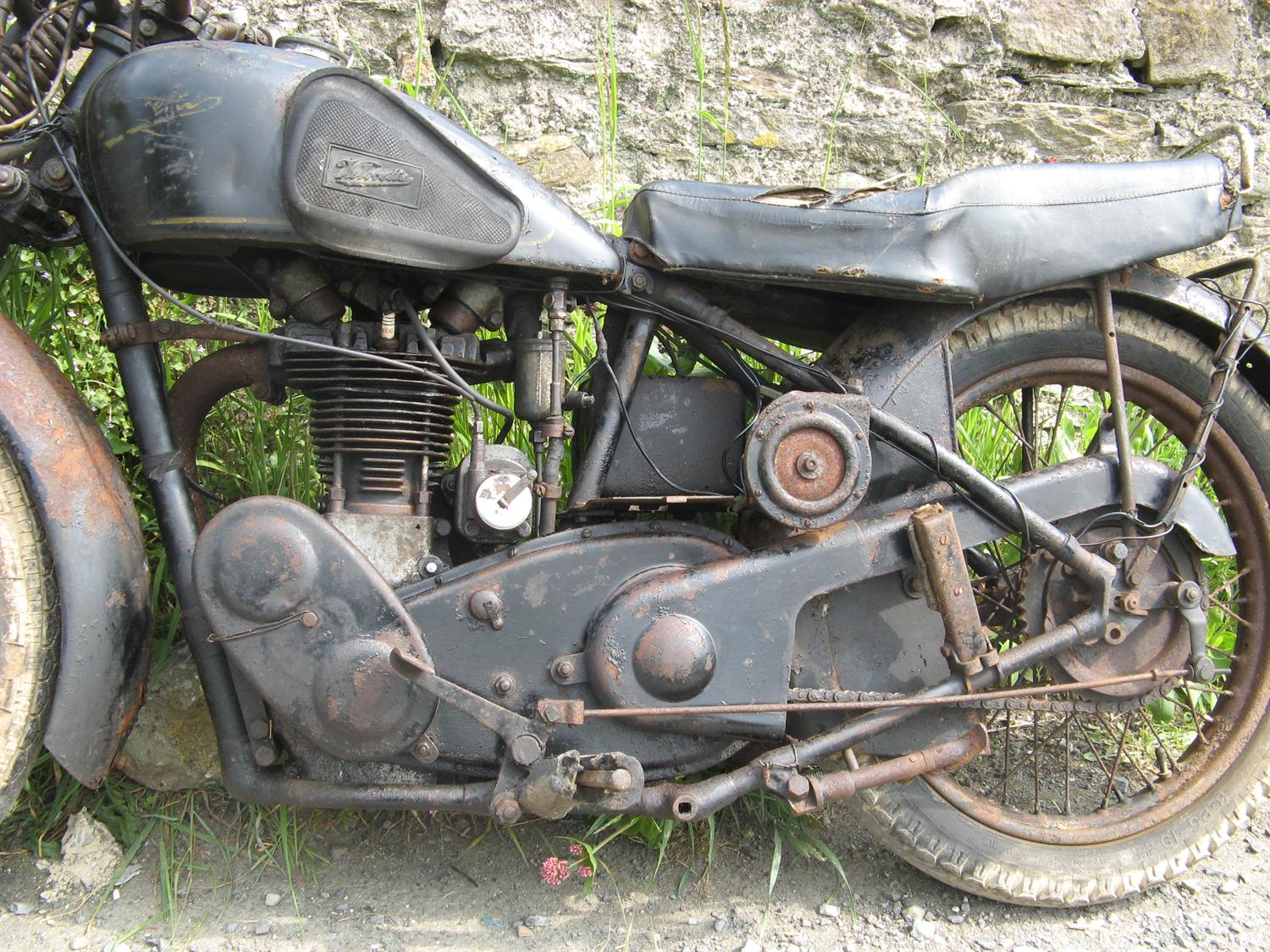

Seat (should be a
single).
-
Rear Stand missing
-

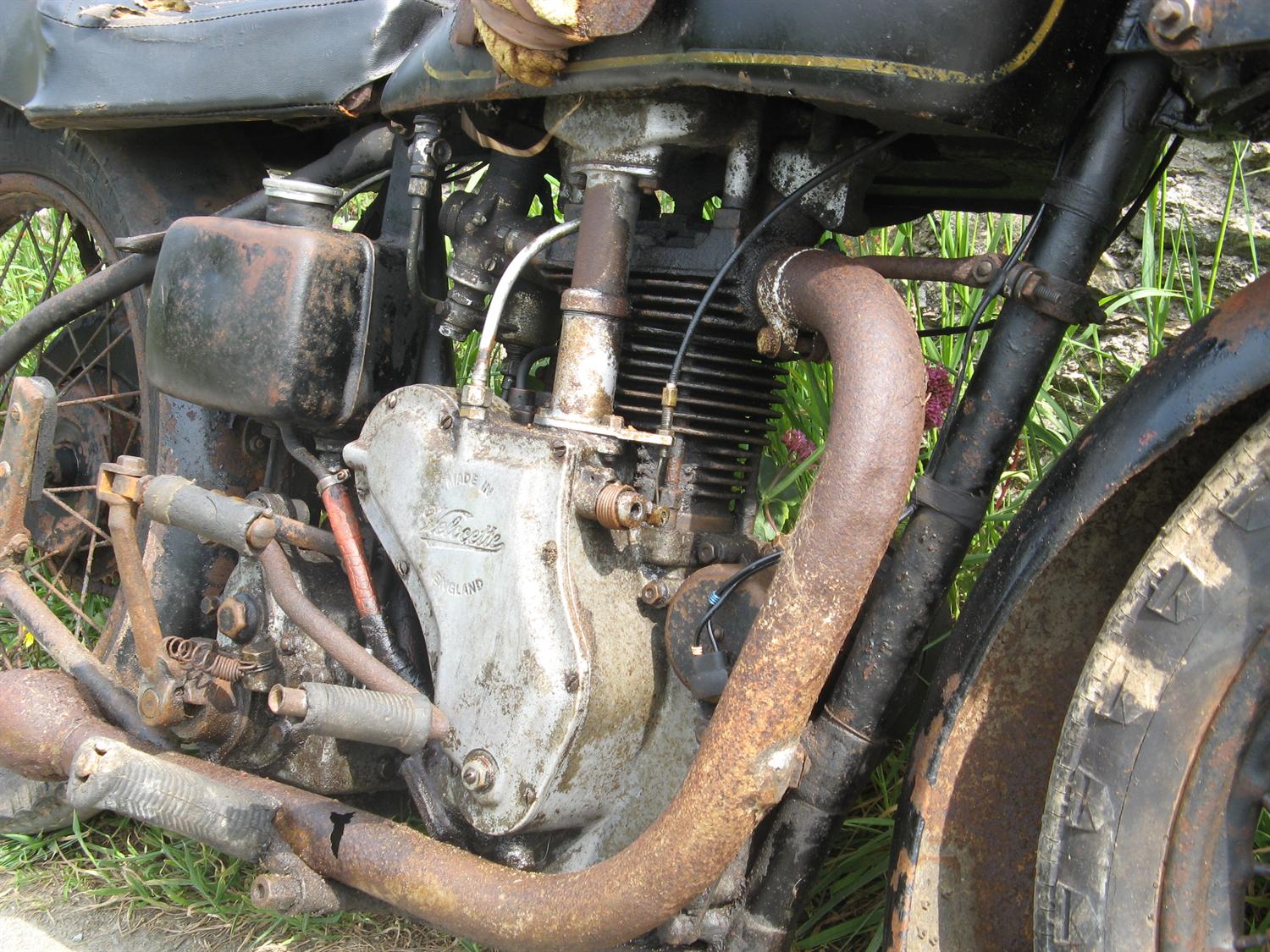

Silencer is rotten!
-

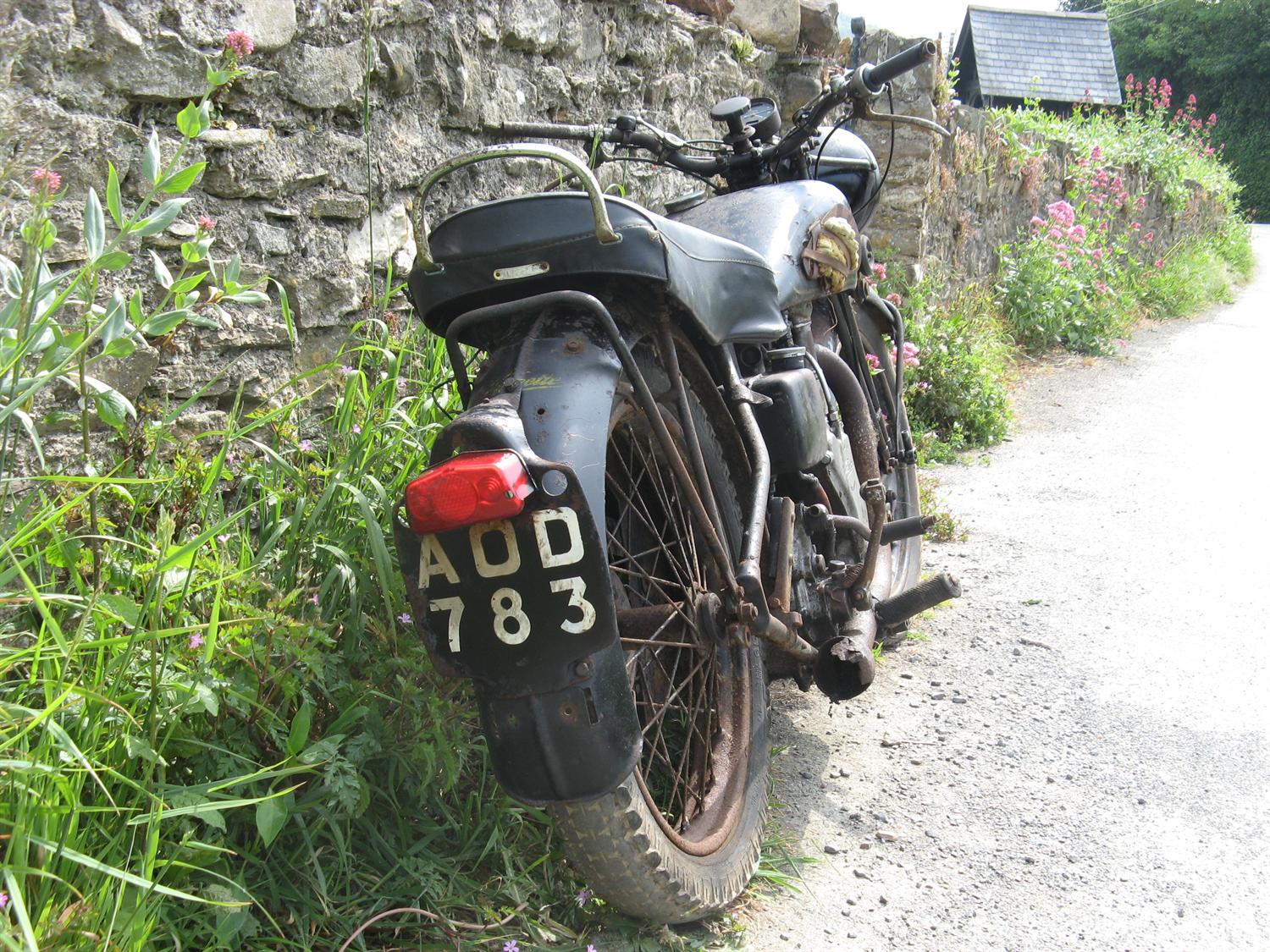

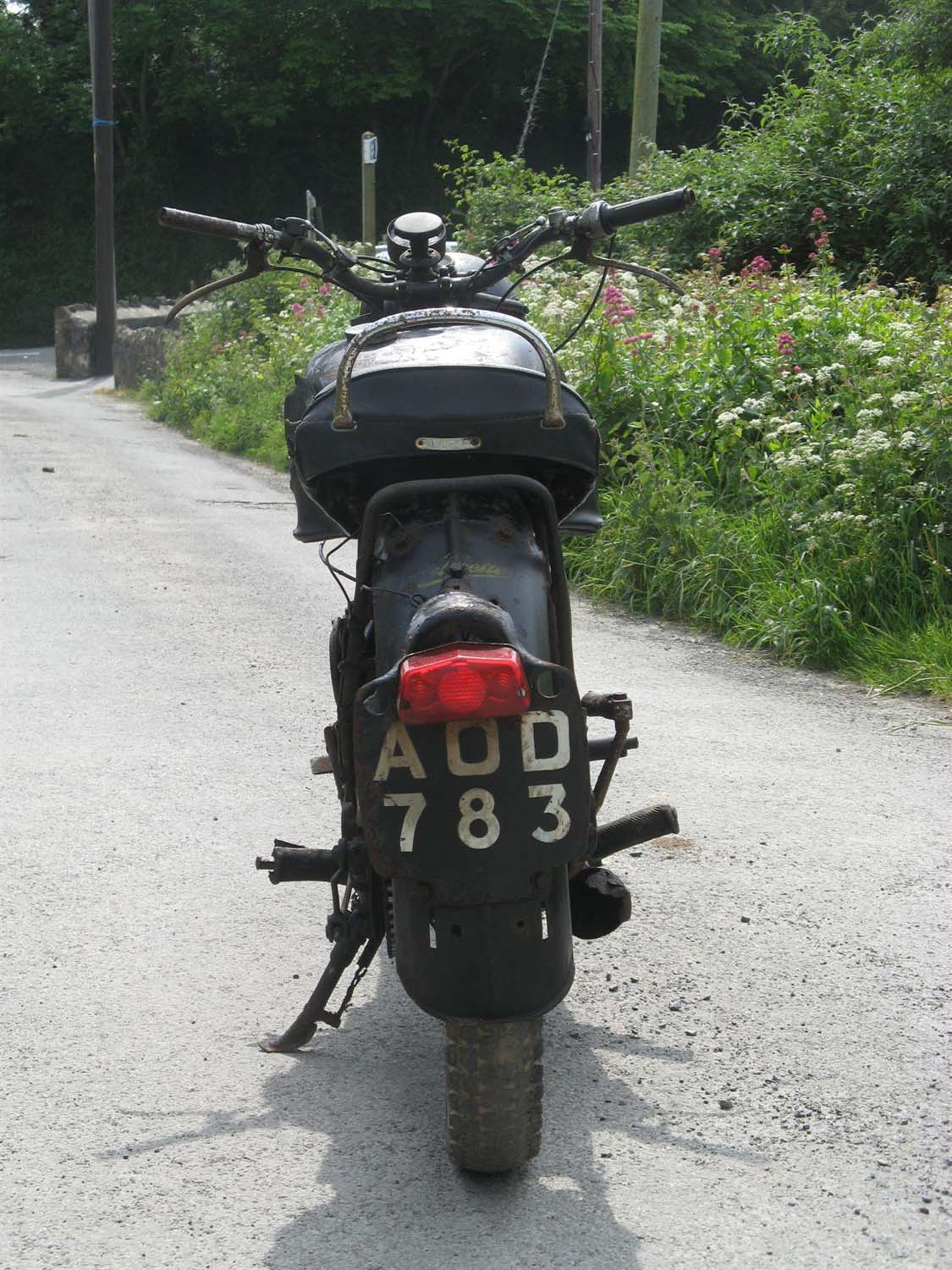

Rear light and
number plate
-

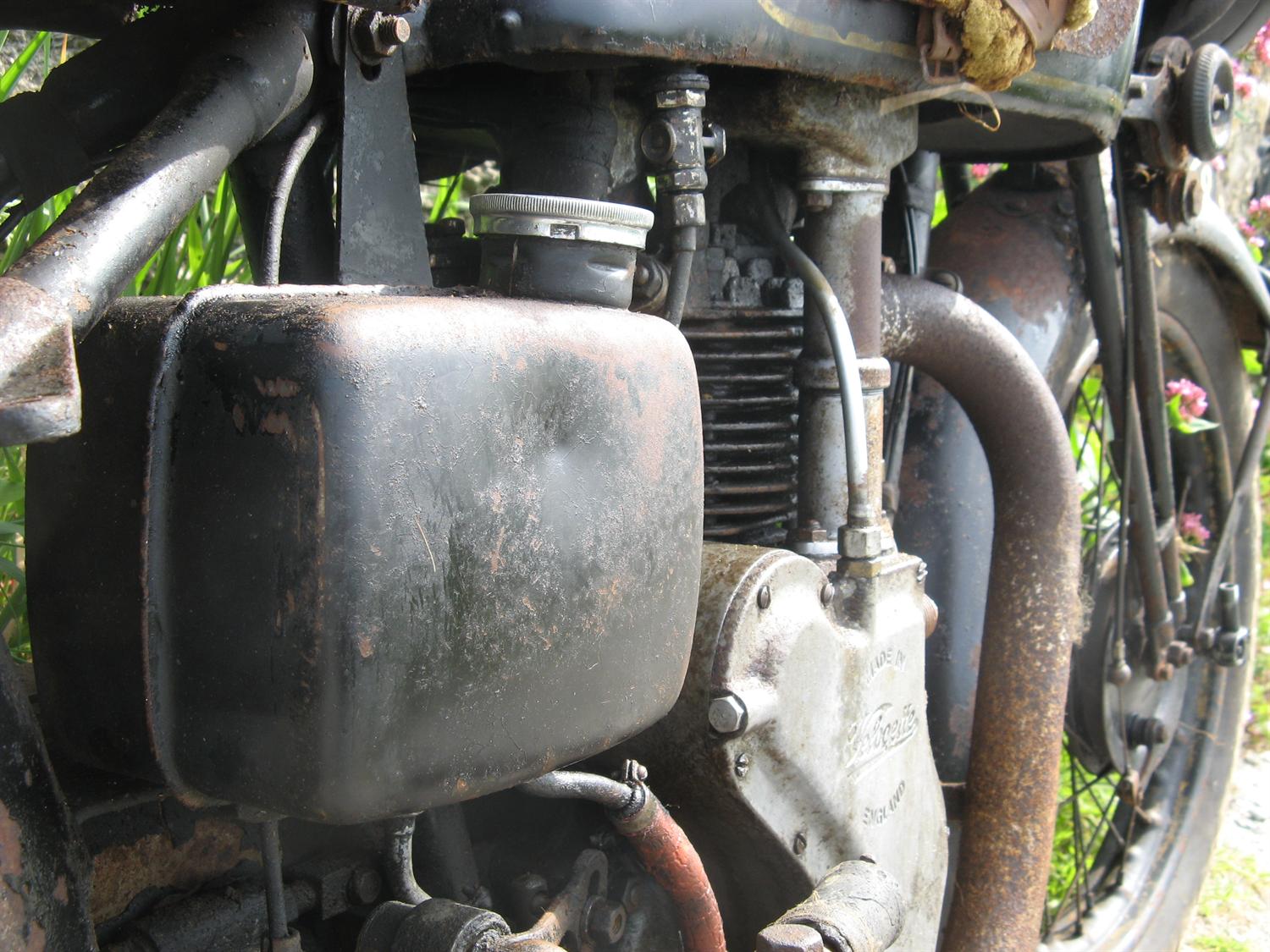

Toolbox is missing
(This is the leather fronted pre-D shaped type)
-
Throttle (should be
push pull type)
-

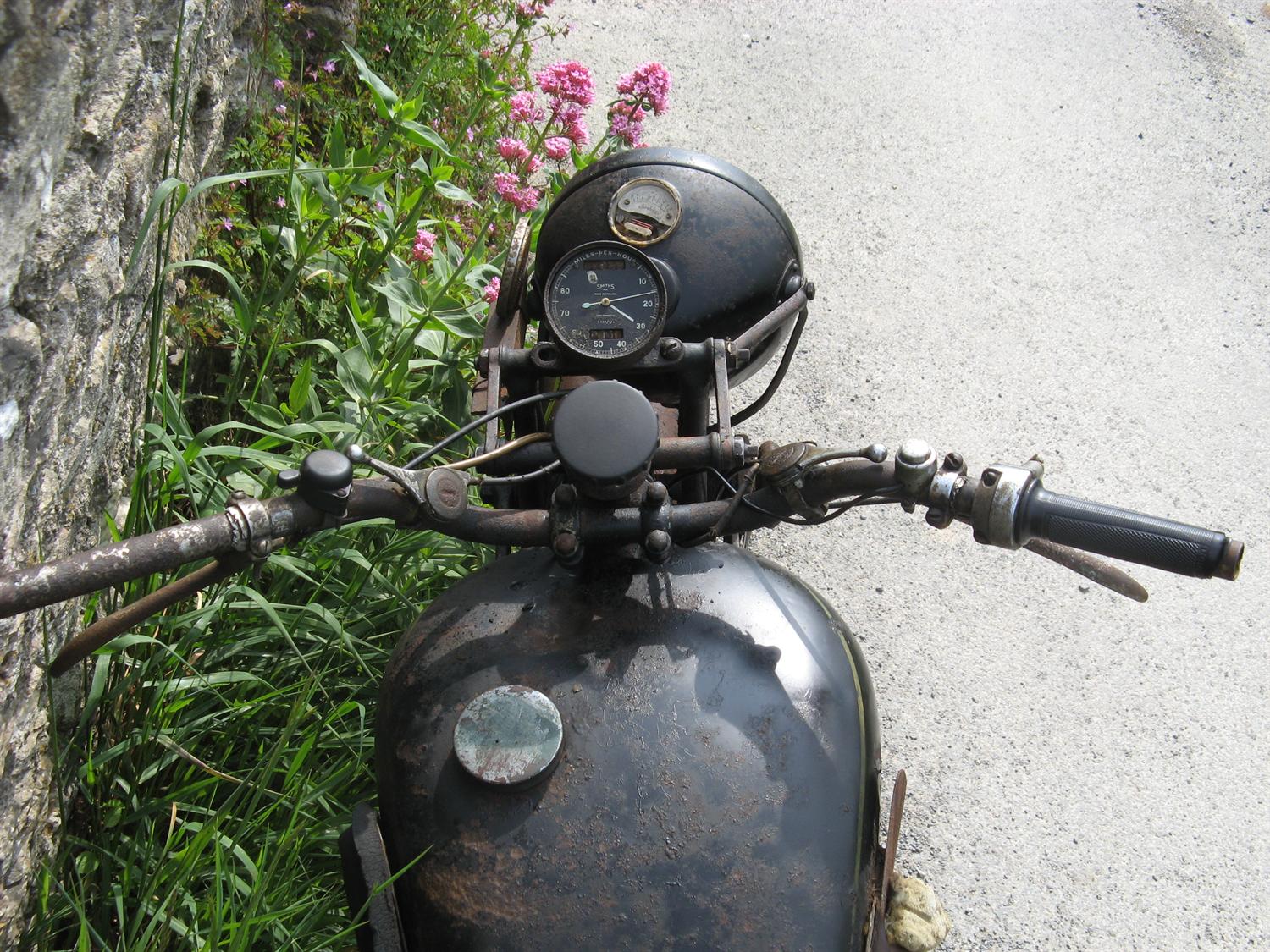

Not sure about the
handlebars but they should have the push pull throttle mount bracket
on the them.
-
Dip switch and horn
buttons should be mounted on the back of the levers and different
type.
-

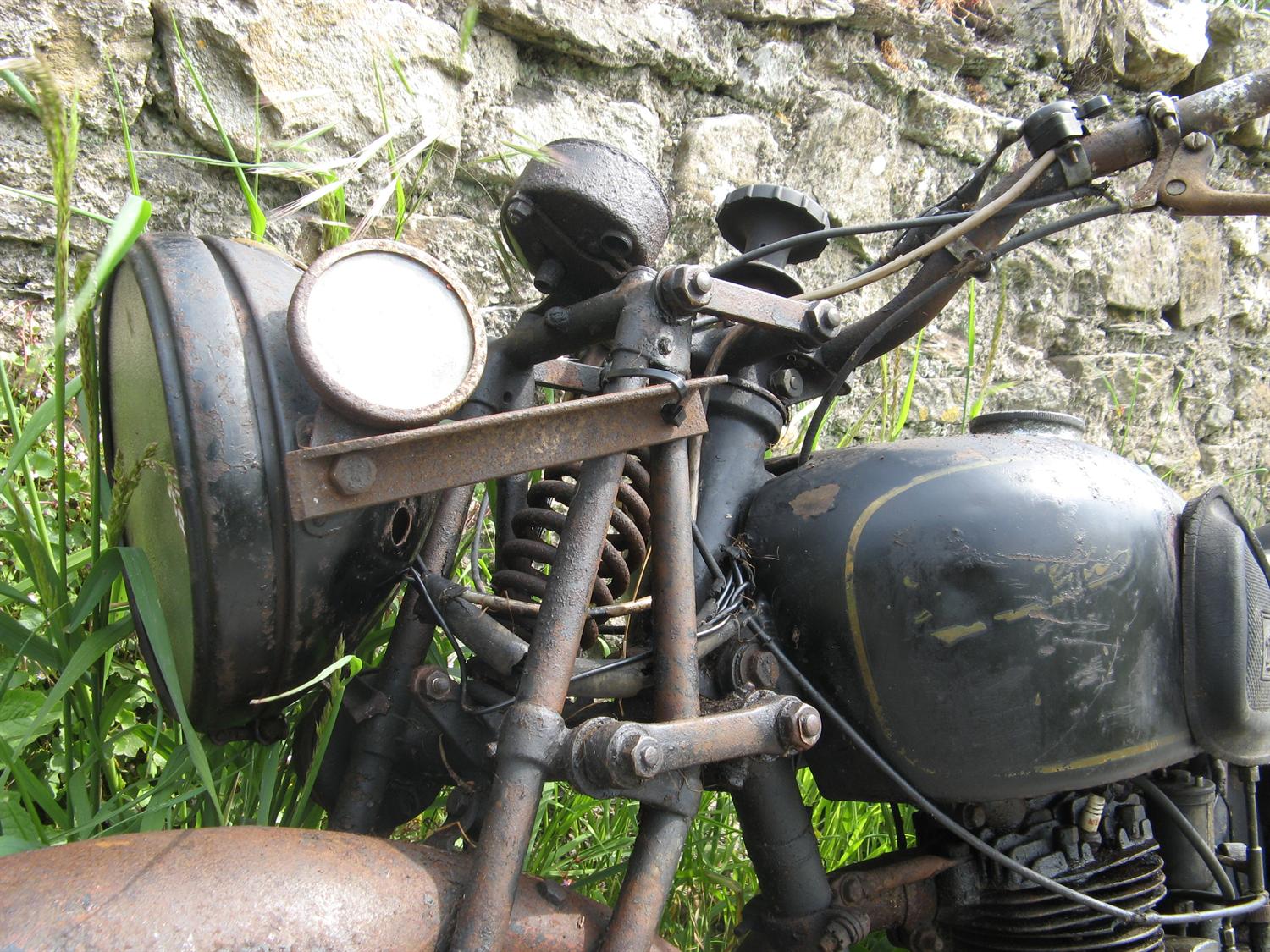

I think that the
damper knob on the front forks should be a metal wing nut and not a
bakelite round type. I can't remember when they changed. There were so
many different types of forks fitted at that time.
-
Tank transfer for
1935 should have the 'TT Winners' on the logo
-

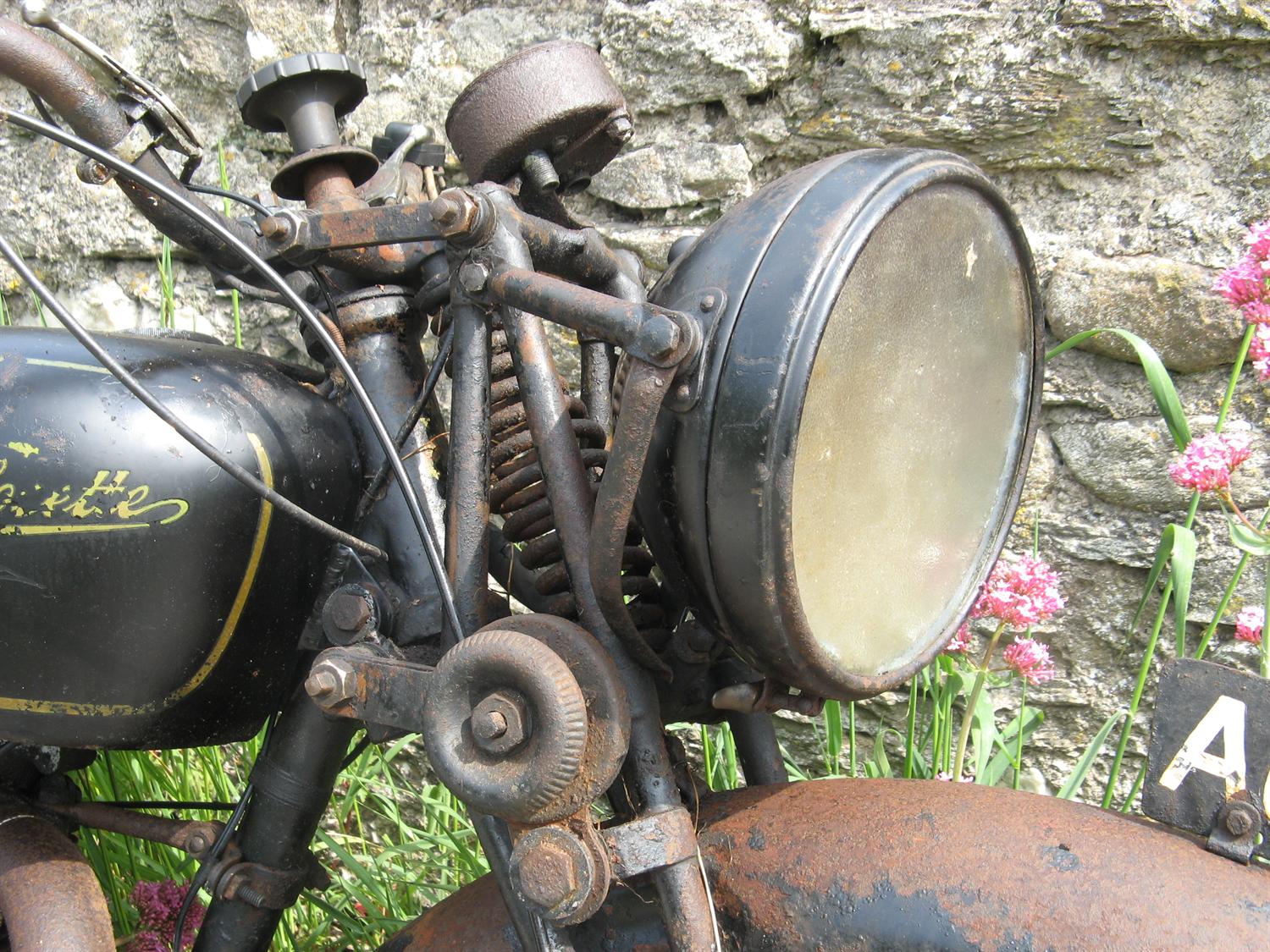

Headlamp bracket is
incomplete
